Permalink Build Log: Slightly-modified European version of a 6G14 Showman, for bass use.

New Topic
Goto Page: Previous 1 2 3 4 5

About time for an update, don't you think?

First up, most important bit: Working with PTFE coated Aerospace wire, a brief review for the guy from a small planet somewhere in the vicinity of Betelgeuse.

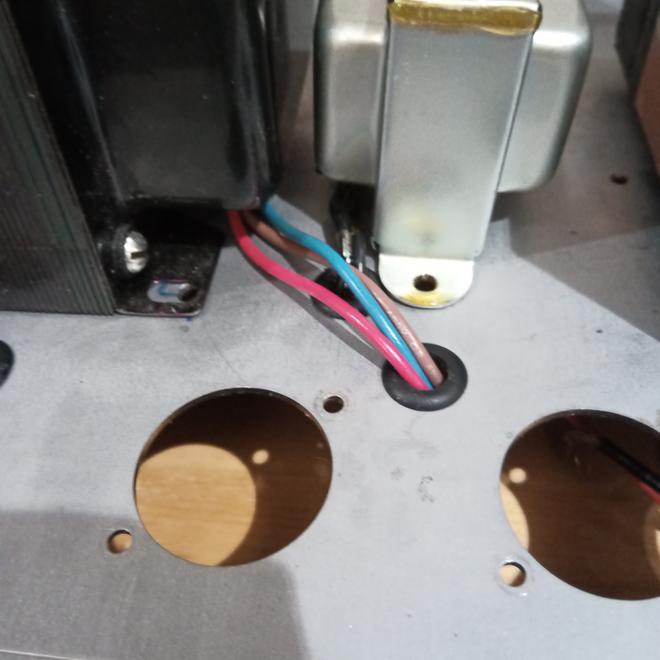

It's honestly fine, but only once you've stripped your ends. That part is horrific. But it takes heat like a champ, it's very strong and it does actually do what it tells you, at least much better than I expected:


So, work on wiring has clearly started to progress. With some encouragement from someone on MEF, I managed to flatten out all my 'standing' axials, so this is the current state of my circuit board. I haven't got the transformers, and I haven't mounted the boards in the chassis yet, so there's still work to do; but it's about 80% complete!


I also put a test load of the 6N2P-EV tubes, and a used set of 6P3S tubes that cost $10. The specs are way too low for the amp, but they should last long enough as a test; and if I've made a heinous screw-up, I don't want to fry a decent set.


Tqi wrote:

First up, most important bit: Working with PTFE coated Aerospace wire, a brief review for the guy from a small planet somewhere in the vicinity of Betelgeuse.

I bought PTFE because I'm a novice and couldn't understand the US/EU wire standards, With PTFE one size does everything. I wasn't being critical just interested how you'd work it because it's different to anything I've used before - I genuinely like the stuff. It does have a reluctance to form sharp angled shapes often causing attractive arcs from point to point and all my plier cutters were ineffective. Betelgeuse over and out:)

My story isn't too far off: There were two choices on AmpMaker and 'one size does everything' was basically my thinking. I definitely like it as well, though it's annoying that buying big reels seems a challenge for consistency.
