Lets play guess whats missing

TheCruelSea

Joined: Feb 25, 2012
Posts: 131
2 Map Pins

Posted on Oct 04 2013 03:25 PM

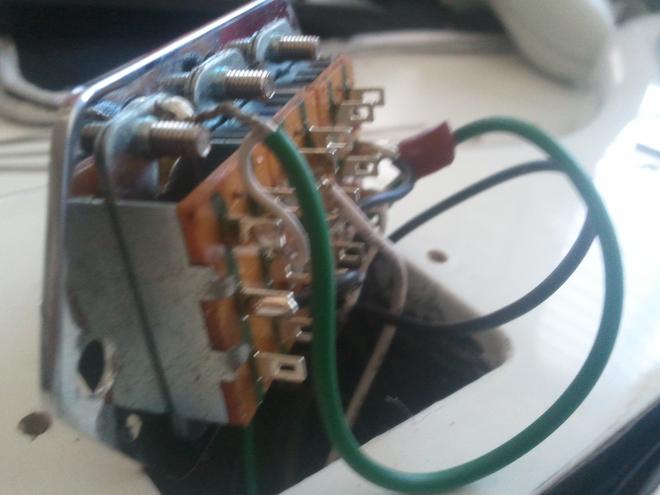

Here's a couple shots of a Jaguar selector switch that isn't working properly.

Top

TheCruelSea

Joined: Feb 25, 2012
Posts: 131
2 Map Pins

Posted on Oct 04 2013 03:27 PM

And here

Top

TheCruelSea

Joined: Feb 25, 2012
Posts: 131
2 Map Pins

Posted on Oct 04 2013 03:28 PM

and here

Top

Brian

Joined: Feb 25, 2006
Posts: 19335
Des Moines, Iowa, USA
United States

Posted on Oct 04 2013 03:29 PM

What is wrong with it? I guess that is in this thread.
Have you inspected the wiring to see if it matches a schematic?
Have you tested the switch with a multimeter?
Have you done anything else to troubleshoot this?

Help us to help you by providing more information.

—

Site dude - S3 Agent #202
Need help with the site? SG101 FAQ - Send me a private message - Email me

"It starts... when it begins" -- Ralf Kilauea

Last edited: Oct 04, 2013 16:36:52

Top

BJB

Joined: Jul 28, 2008
Posts: 413
United States

Posted on Oct 04 2013 11:23 PM

I, for one, find those pictures to be hilarious! That black wire between the middle switch and the switch on the left is hooked up wrong. It is supposed to be connected to the middle lug of the middle switch, but it's attached to the 'corner' instead.

Here's a link to some pictures I took of my MIJ Jaguar when I did a series/parallel switching mod:

https://drive.google.com/folderview?id=0B3WkRWcl7bIbaUswelBtb0ptMzg&usp=sharing

The first picture shows the stock wiring. You'll have to flip the picture 180 degrees so it matches the one you took. But you can see right away how they wired up the middle lugs of all the switches.

The quickest way to fix it would be to unsolder the black wire at the corner of the middle switch and resolder it to the middle lug, where that other black wire is already connected.

—

If it ain't broke, fix it until it is.

Last edited: Oct 04, 2013 23:29:47

Top

6V6

Joined: Nov 15, 2008
Posts: 284

Posted on Oct 05 2013 02:29 PM

If I were in your position, I would probably replace the switches with vintage styled ones (cheap). You can get a 1 foot of cloth wiring form a guitar store for a doller or two. You might save yourself headaches down the road and would be one step closer to having nice quality wiring.

http://www.fruugo.us/dpdt-heavy-duty-slide-switch/p-1316290#s-3456955

Radio Shack sells a version that is much stiffer than the ones that are in my AVRI. Someday I will replace mine, as they are too easy to switch inadvertantly.

I love the way you can work on the Jag switches with removing the strings or pick guard!

Top

TheCruelSea

Joined: Feb 25, 2012
Posts: 131
2 Map Pins

Posted on Oct 05 2013 07:52 PM

Thank you all! At first all I had to go on were seymour duncan schematics, but I found the Fender ones (after being told by two technicians they didn't exist) and corrected the problem. Excuse me for making two threads on this problem. I posted the pics after I fixed it to show the quality management at the Squier plant. Take it easy

Top

Brian

Joined: Feb 25, 2006
Posts: 19335
Des Moines, Iowa, USA
United States

Posted on Oct 05 2013 09:03 PM

Nicely done. So it came wired wrong from the factory?

—

Site dude - S3 Agent #202
Need help with the site? SG101 FAQ - Send me a private message - Email me

"It starts... when it begins" -- Ralf Kilauea

Top

TheCruelSea

Joined: Feb 25, 2012
Posts: 131
2 Map Pins

Posted on Oct 06 2013 09:51 PM

Brian said
Nicely done. So it came wired wrong from the factory?

Ya. Unfortunately this isn't the first Squier related problem. I first bought a Squier VM Jazzmaster and only the rhythm circuit worked. But other than that I love them to death!

Last edited: Oct 06, 2013 21:52:46
